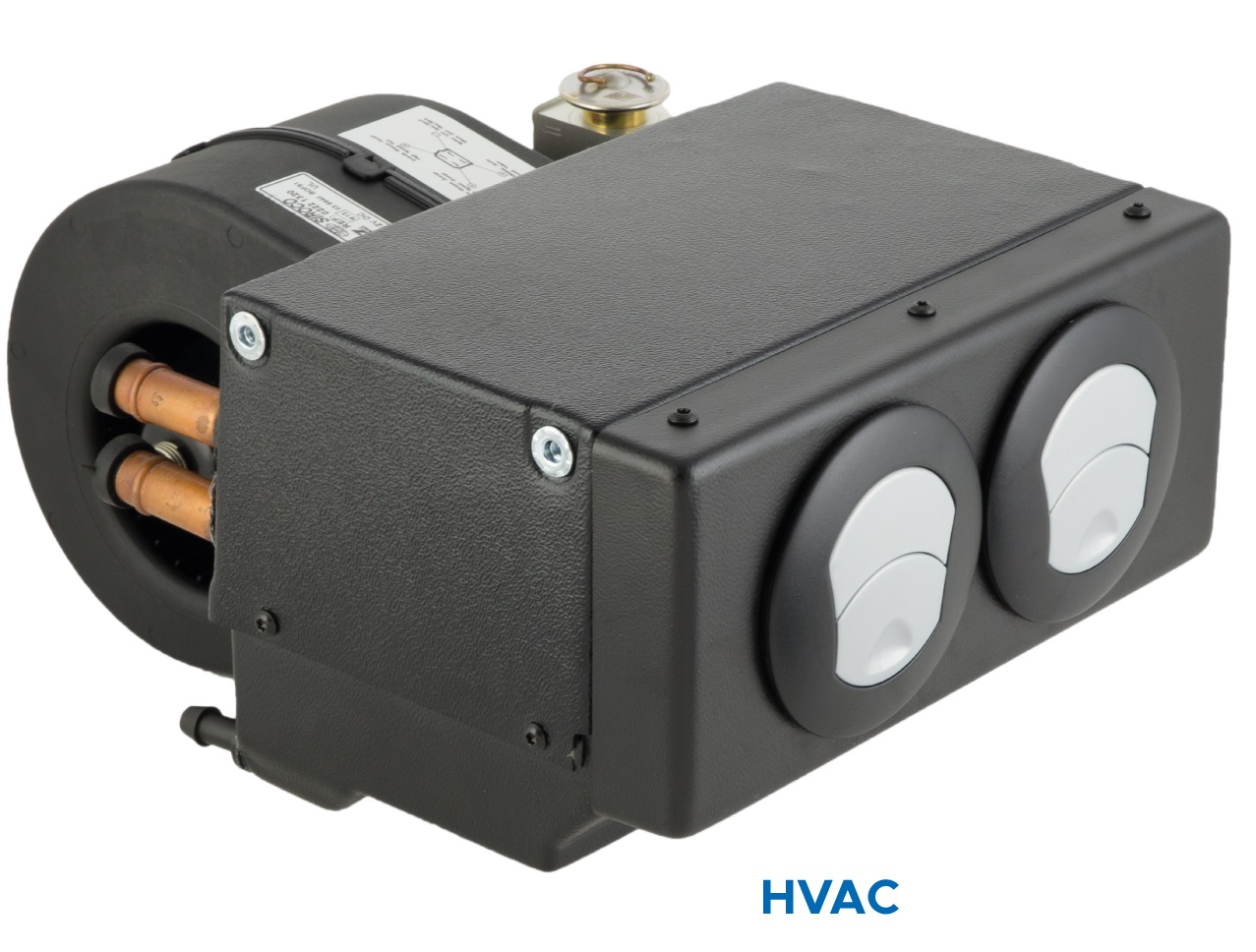

BOREAL F92 HVAC & EVAP

2 versions: air conditioning or heating and air conditioning

Available with different fronts:

  • Version D: with sleeves Ø40 to Ø70 mm
  • Version F92TP Control: with 2 Sensyo 92TP air diffusers and 2 control knobs
  • Version F92TP: with 2 Sensyo 92TP air diffusers

Technical summary

  • 3-speed ventilation
  • Voltage: 12V or 24V
  • HVAC version: Ø16mm hose diameter
  • ABS body
  • Integrated "anti-freezing" thermostat
  • Expansion valve O-Ring connection
  • Available with black or metal/black Sensyo 92TP air diffusers
  • Supplied with mounting kit and connector
Information request
See product sheet
Technical characteristics
Type Voltage Electrical power Weight Nominal air flow rate Heating capacity ethylene glycol Cooling capacity
HVAC 12/24 V 130 W 3,5 kg 250 m3/h 3,7 Kw 2.7 kW
EVAP 12/24 V 130 W 3,5 kg 250 m3/h - 3.8 kW
