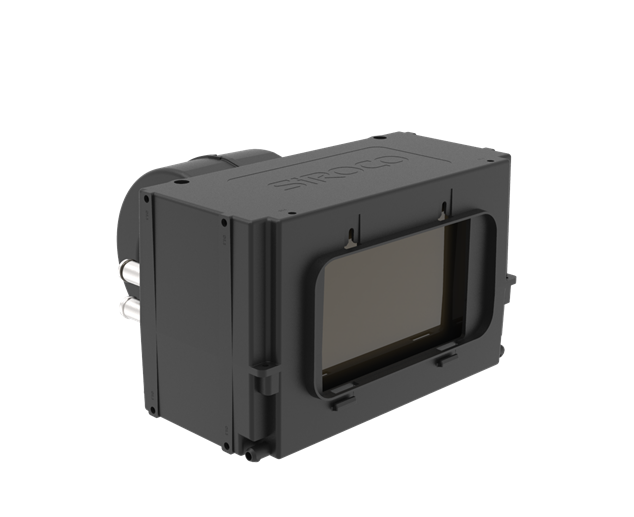

SANOA B HVAC & EVAP+ BLDC
2 versions: air conditioning or heating and air conditioning.
Also available in electrical heating and air conditioning unit, and electric heating unit.
Available with different fronts:
- Version D: 6 sleeves Ø55
- F version: 4 ajustable Sensyo II 84 diffusers in black and metal/black
Optional brushless fan and PWM speed controller for a longer service life to extend the SANOA’s service life and to have better speed control.
Technical summary
- Gaz R134a and R1234yf compatibility
- 3-4 speed ventilation
- Voltage: 12V or 24V
- HVAC version: Ø16mm hose diameter
- Including “anti-freezing” thermostat
- Expansion valve O-Ring connection
- Supplied with mounting kit and connector
- Also exists in E-HVAC version
- Brushless blower and PWM speed controller option. Mating connector and harness on demand.
Information request
See product sheet
Choose another version
| Type | Voltage | Electrical power | Weight | Nominal air flow rate | Heating capacity ethylene glycol | Cooling capacity |
|---|---|---|---|---|---|---|
| HVAC | 12/24 V | 200 W | 4,4 kg | 590 m3/h | 6.8 kW | 5.2 kW |
| EVAP | 12/24 V | 200 W | 4,4 kg | 590 m3/h | - | 6.3 kW |
